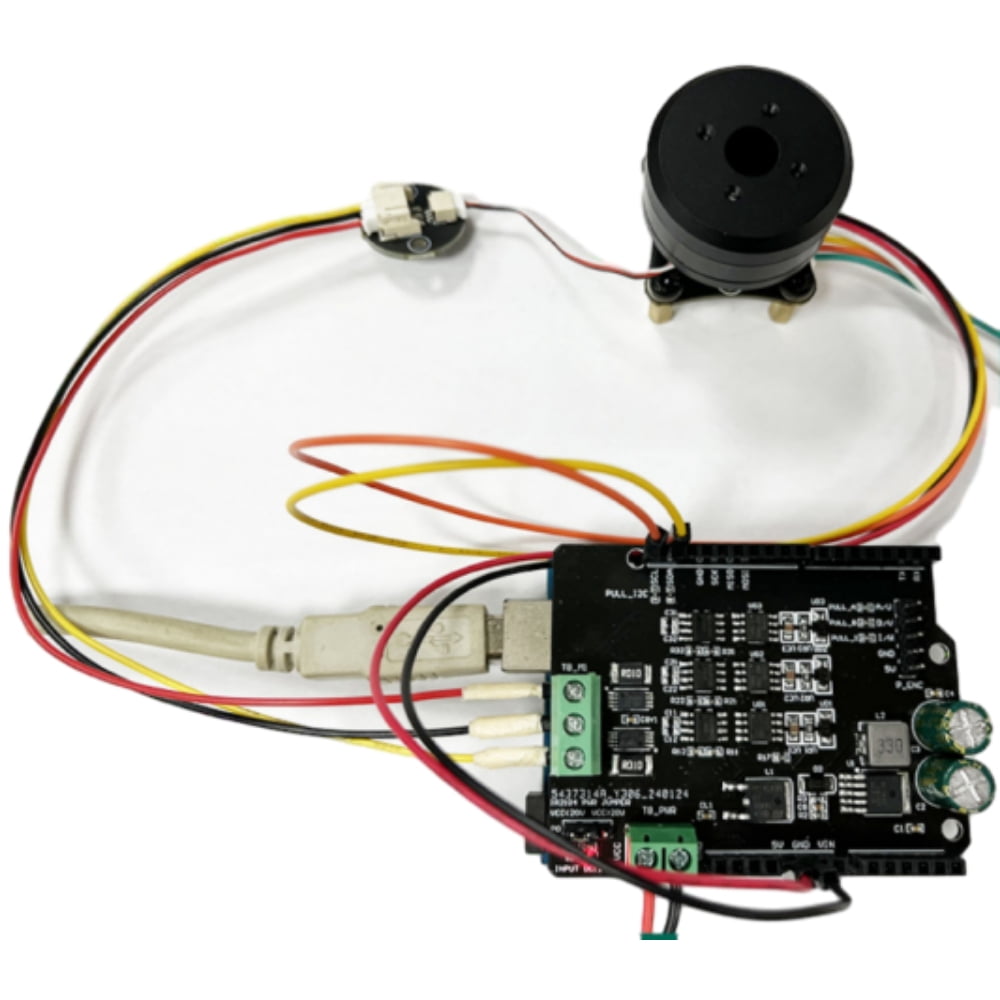

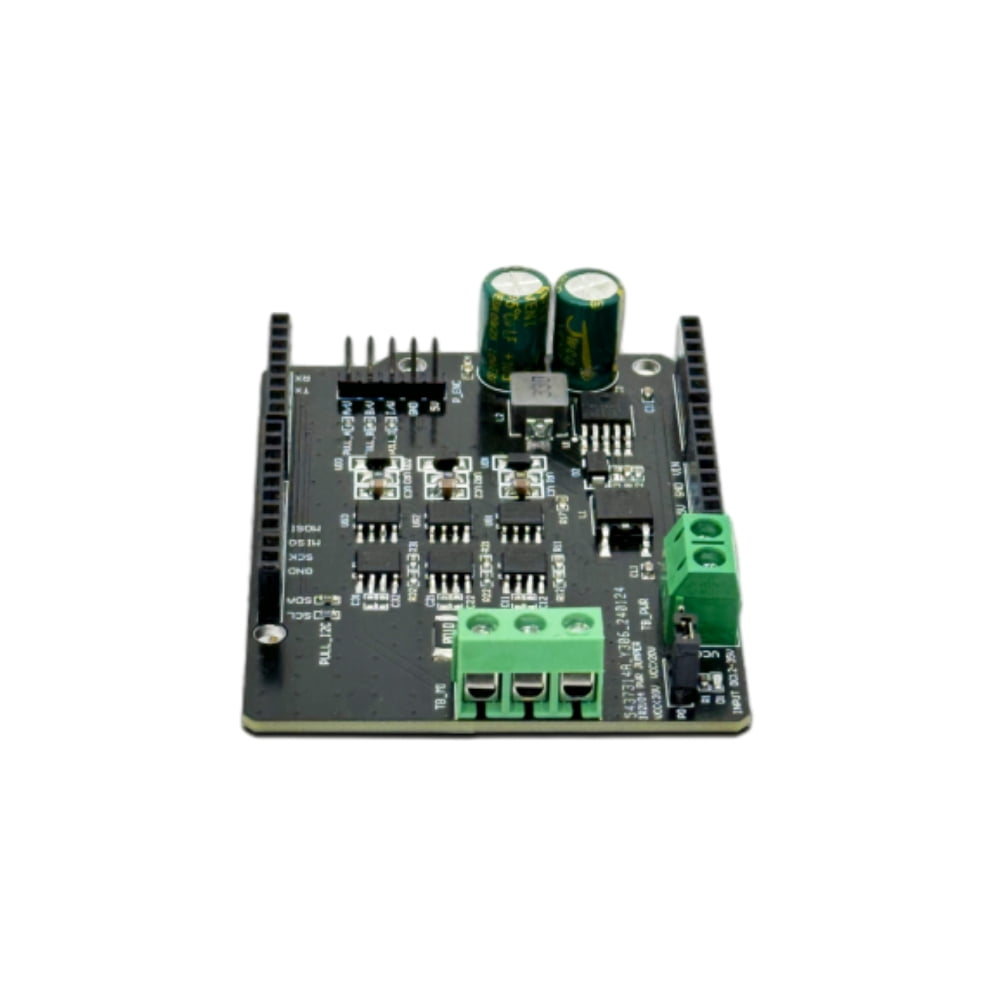

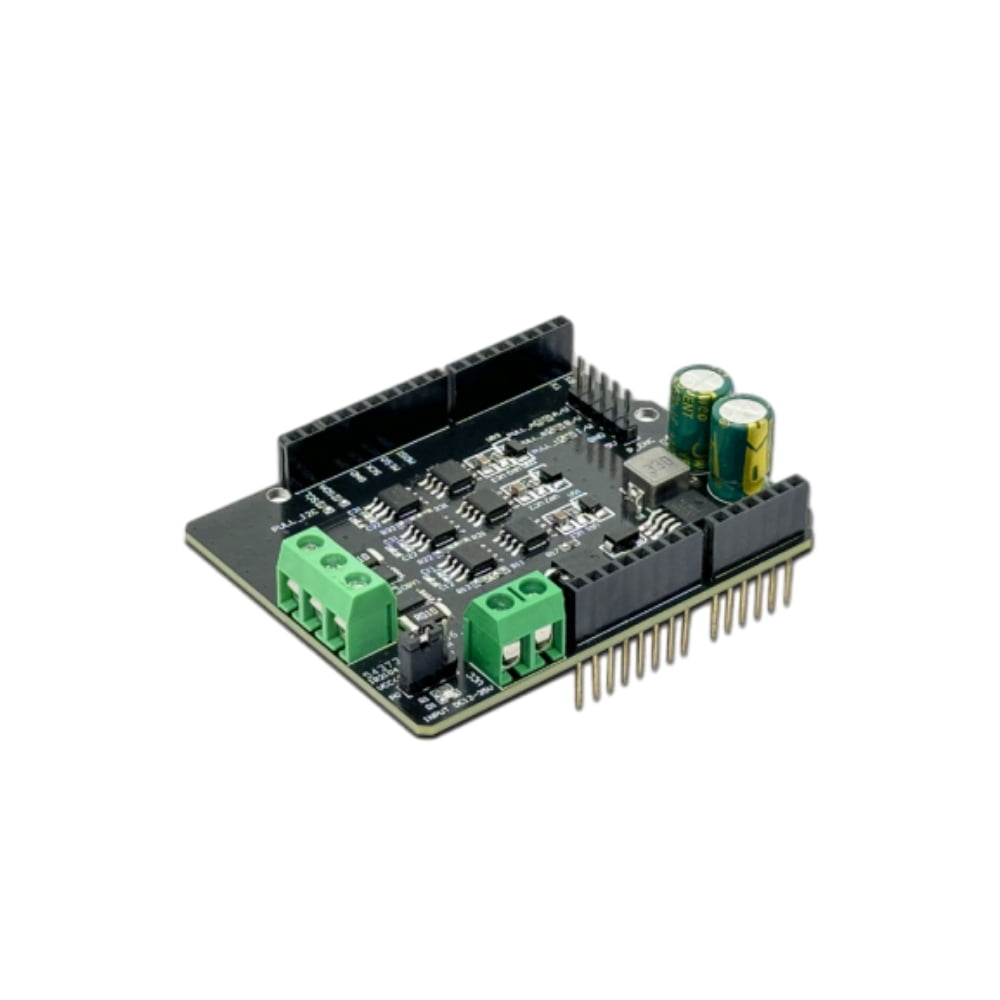

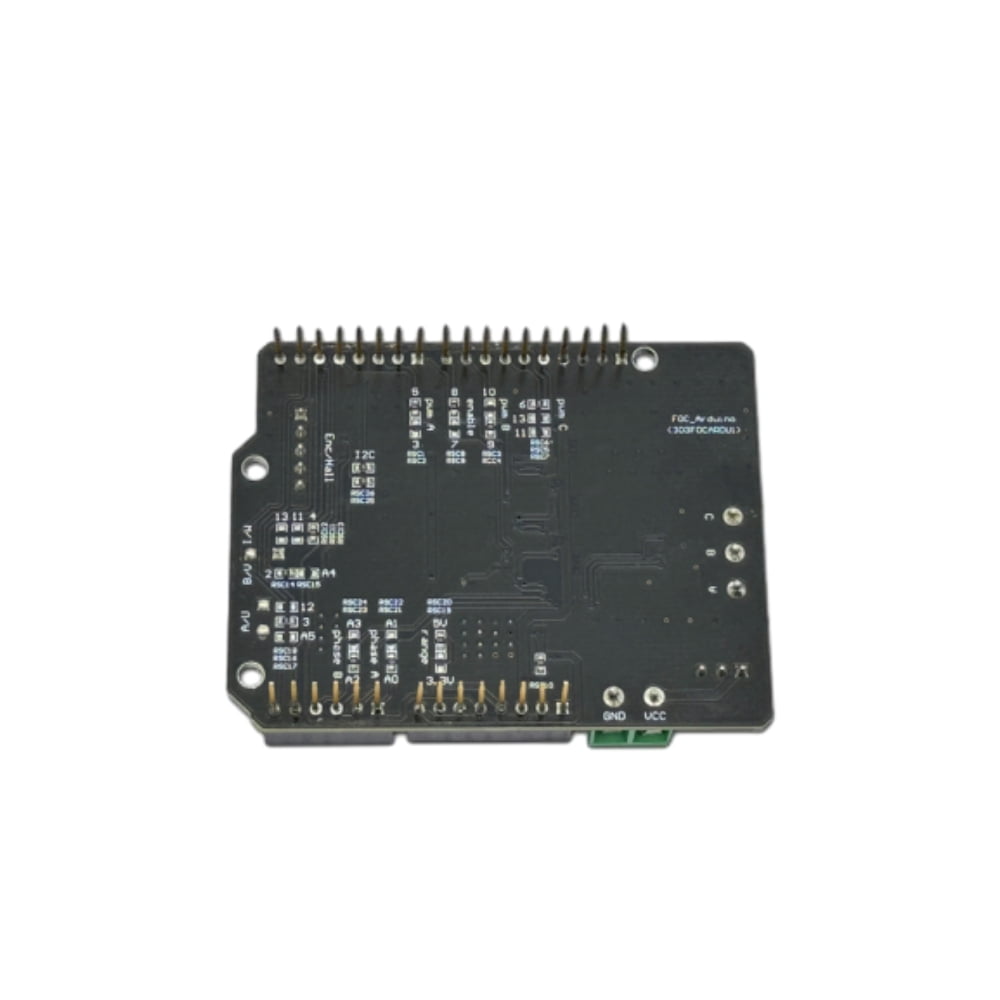

Brushless Motor Driver Module FOC Brushless Motor Driver Board Compatible with Simple FOC Shield V2.0.4 DC12-35V BLDC Driver Circuit Brushless Motor

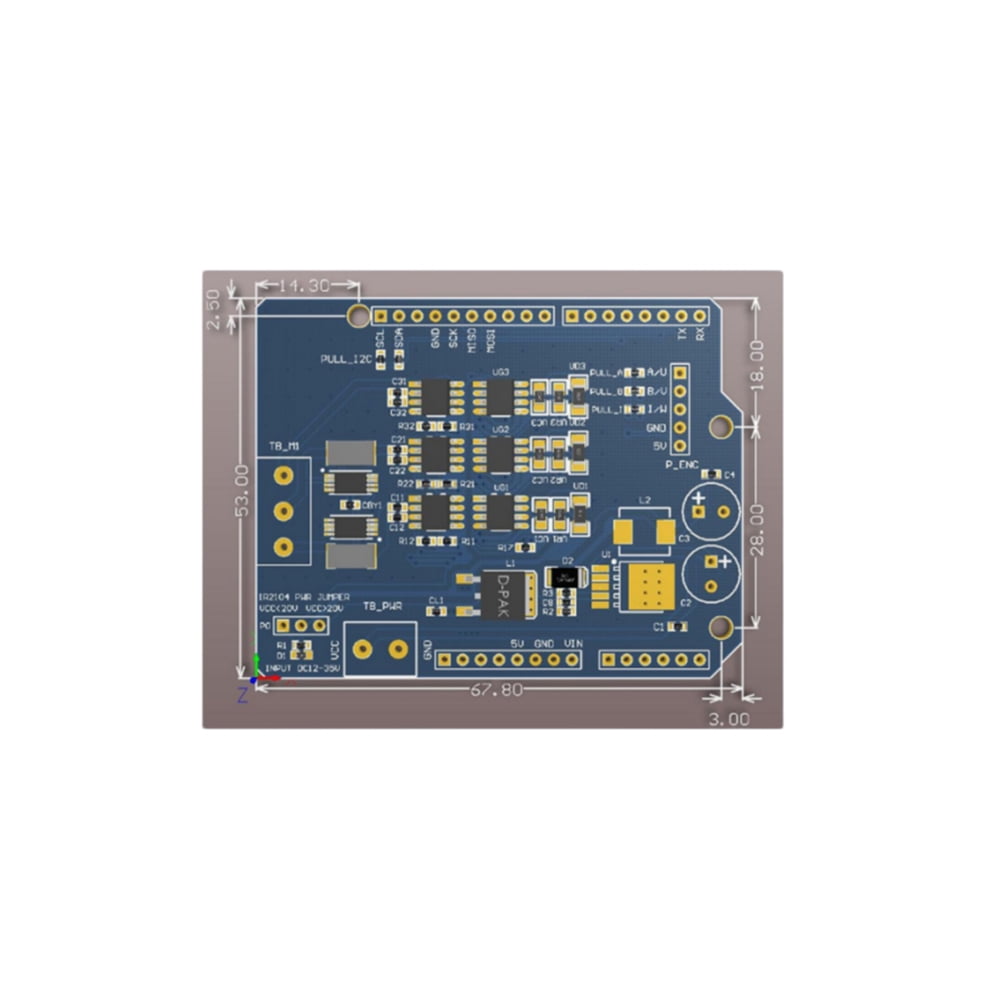

Product Description<br><br>FOC Brushless Motor Driver Board Compatible Simple FOC Shield V2.0.4 DC12-35V BLDC Driver Circuit Brushless Motor Driver Module<br><br>The Arduino FOC brushless motor driver board uses 3 discrete high-low gate drivers and 6 NMOS transistors to form a BLDC driver circuit, which is compatible with the foreign open source project Simple FOC Shield V2.0.4 and can be directly inserted into the Arduino The NNO development board is used as a Shiled and supports a variety of sensor interfaces. Users can use the Simple FOC library in Arduino environment to control the smooth and high-precision operation of BLDC brushless motors.<br><br>Feature:<br>Three IR2104 gate drivers and two on-board INA240 high-precision current sensors are used to measure the A-B phase current.<br>BLDC drive circuit, support Hall, magnetic sensor and other encoders, power supply voltage DC12-35V.<br>Compatible open source project Simple FOC Shield V2.0.4 can be directly plugged into the Arduino NNO development board for use as a Shiled.<br><br>Specification:<br>1. VCC, GND: DC12-35V power supply.<br>2. A, B, C: brushless motor interface.<br>3. GPIO outlet can be directly inserted into Arduino UNO and other development boards.<br>4. IR2104 power supply jumper cap: Because IR2104 only supports a maximum of 20V power supply, when the VCC is less than or equal to 20V, the jumper cap is inserted at the left end, and the power supply voltage of IR2104 is equal to VCC. When the VCC is 20V larger. When the jumper cap is plugged into the right end, the supply voltage of IR2 104 is equal to 16V.<br><br>Note:<br>1.Due to the light and screen difference, the item's color may be slightly different from the pictures.<br>2.Please allow 1mm-1cm differences due to manual measurement.<br><br>Package includes:<br>1x Motor Driver Board
