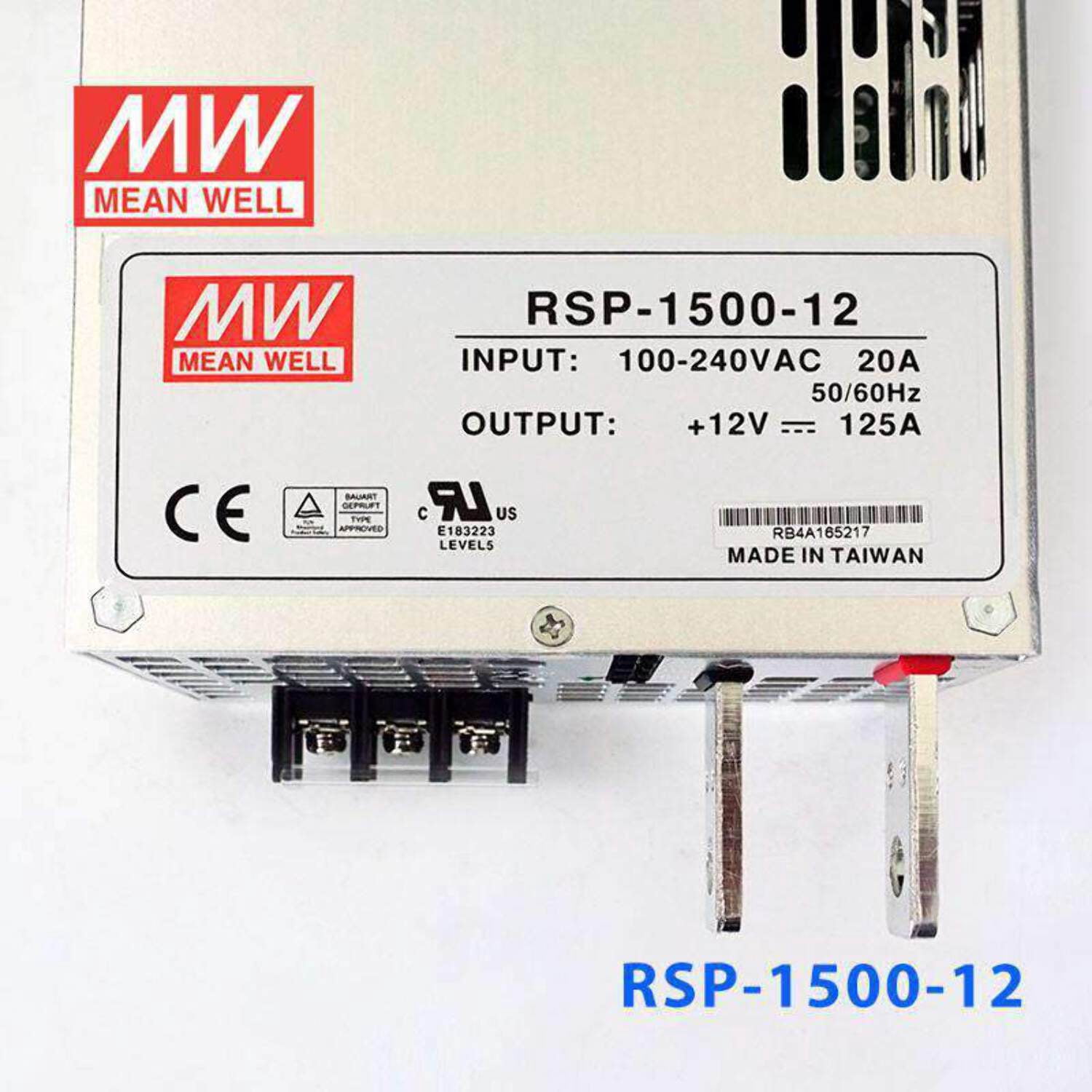

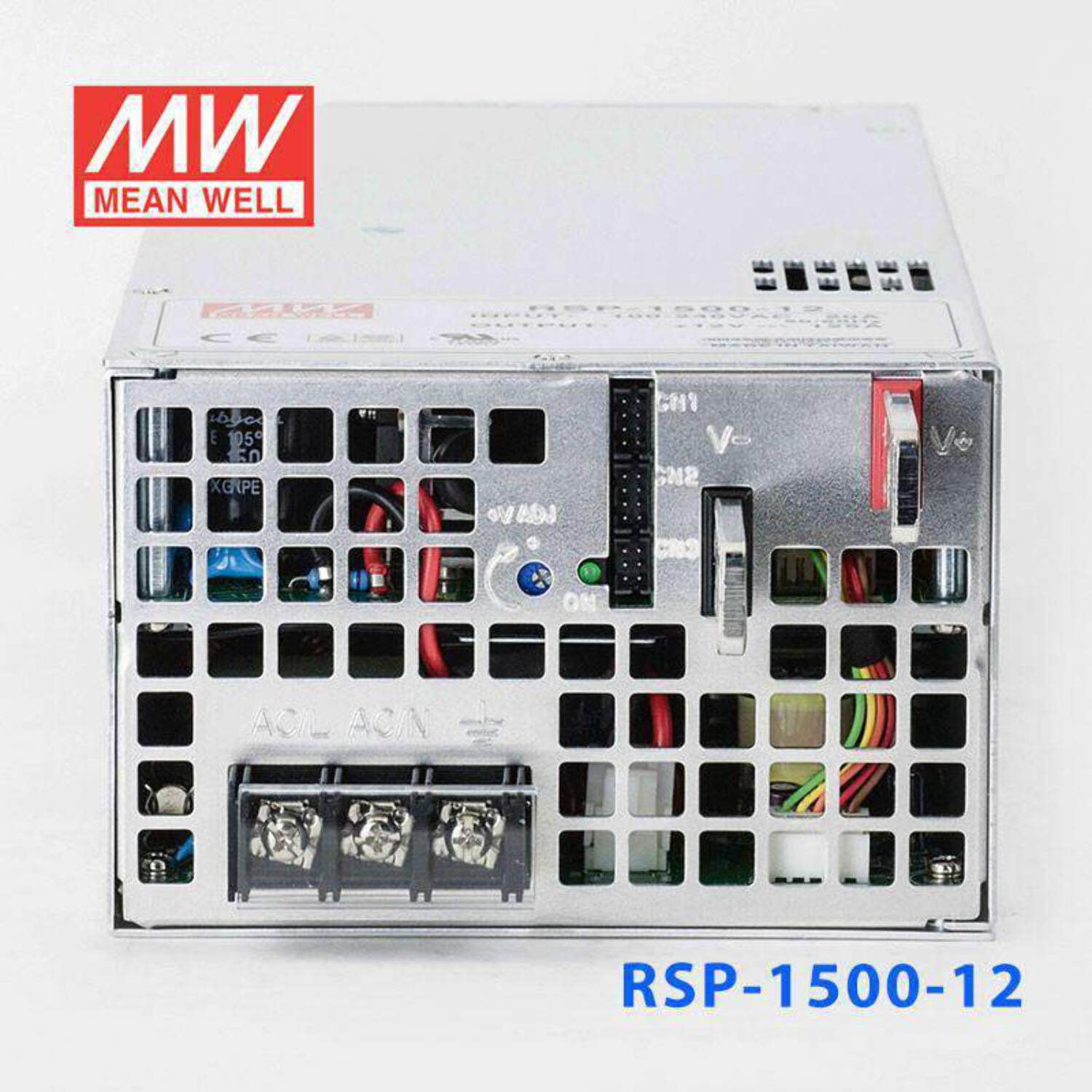

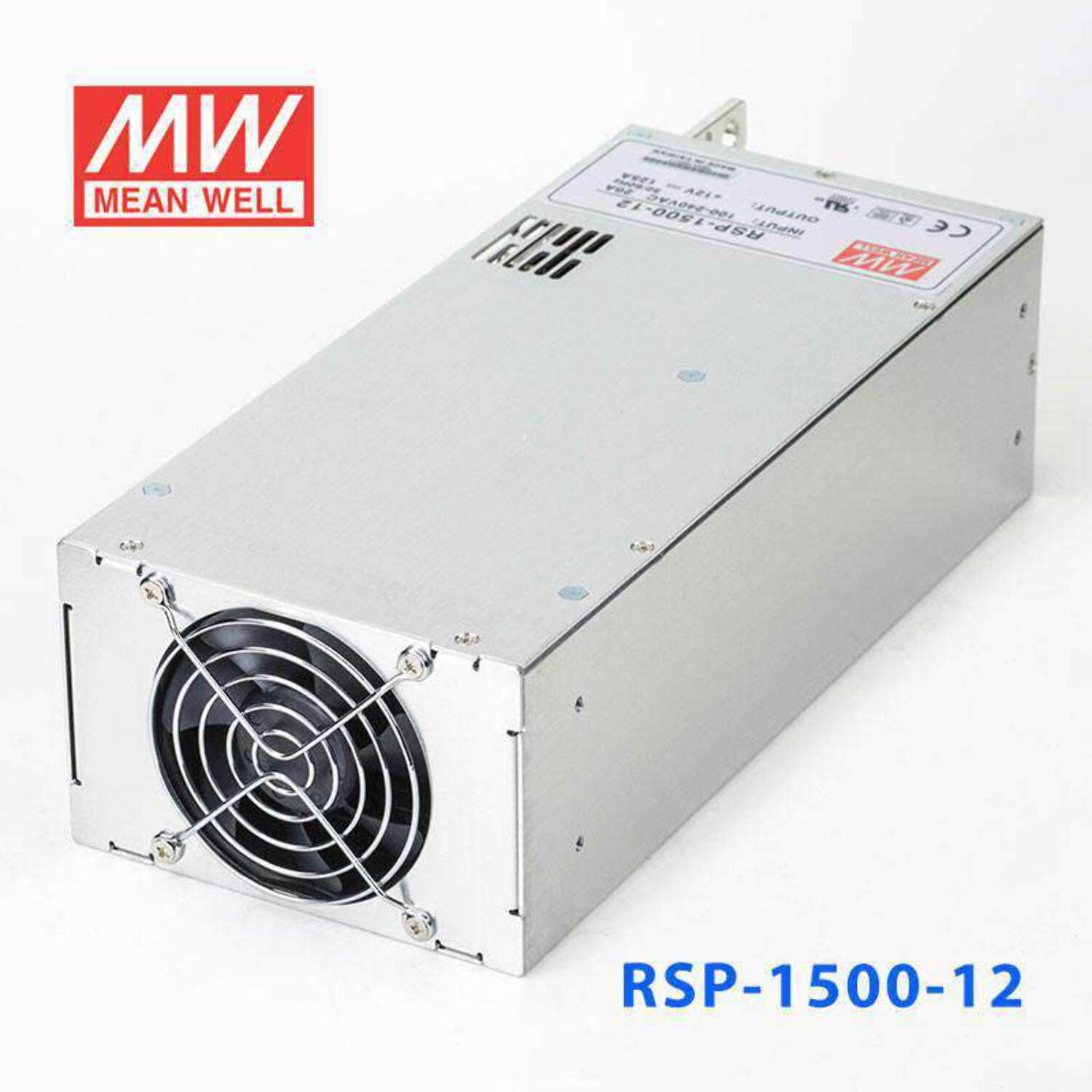

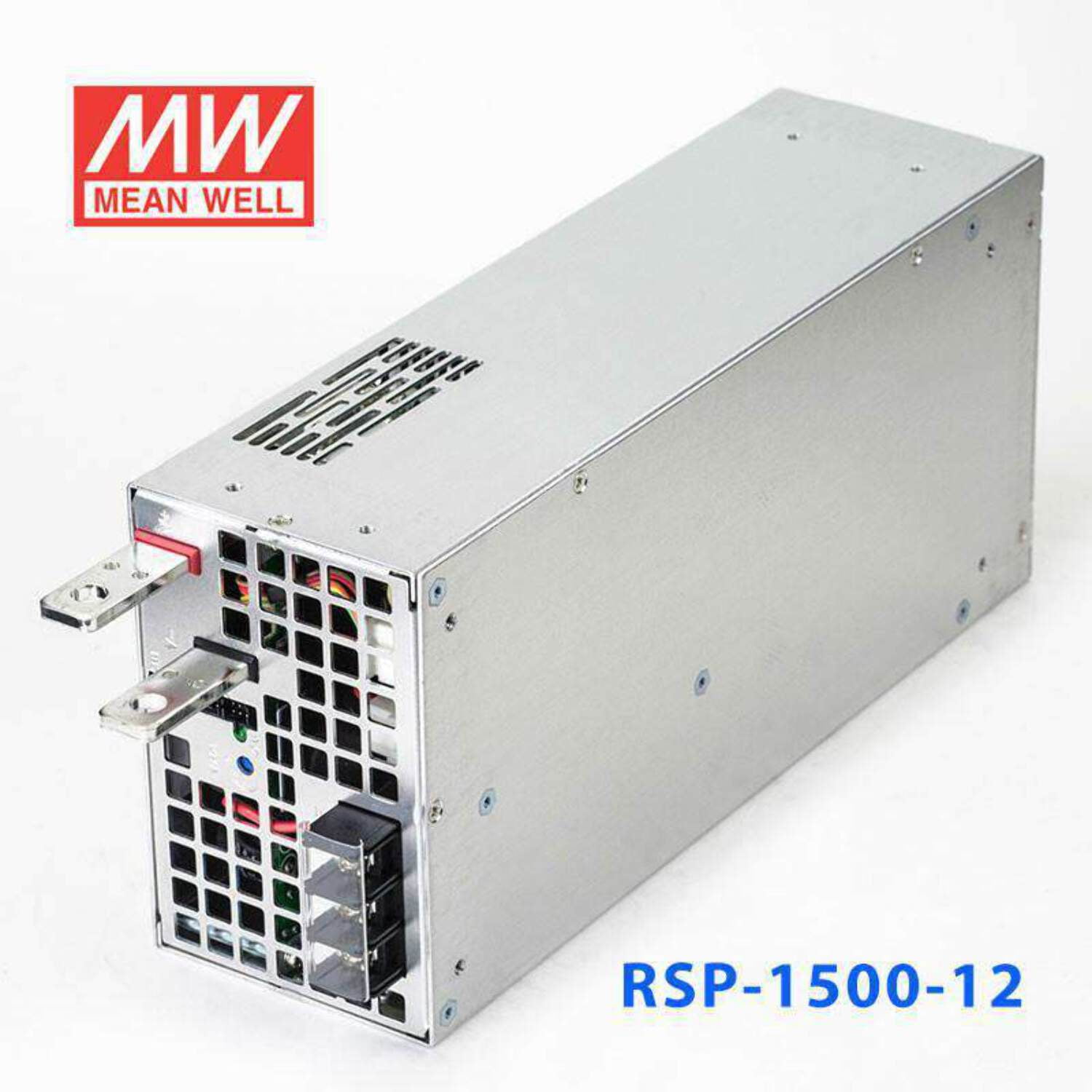

Mean Well RSP-1500-12 Power Supply 1500W 12V

<em></em> Features<table><tbody><tr><td>Universal AC input / Full range</td></tr><tr><td>Built-in active PFC function</td></tr><tr><td>Protections: Short circuit / Overload / Over voltage / Over temperature</td></tr><tr><td>Forced air cooling by built-in DC fan</td></tr><tr><td>Vo can be trimmed by external resistor or external control signal</td></tr><tr><td>Built-in current sharing</td></tr><tr><td>Built-in remote sense and ON/OFF control</td></tr><tr><td>Built-in auxiliary power</td></tr><tr><td>Alarm signal output</td></tr><tr><td>5 years warranty</td></tr></tbody></table><br><em></em> General Specification&nbsp;<table><tbody><tr><td><strong>AC input voltage range</strong></td><td>90~264VAC; 127~370VDC</td></tr><tr><td><strong>AC inrush current (max.)</strong></td><td>Cold start, 60A at 230VAC</td></tr><tr><td><strong>DC adjustment range</strong></td><td>-30%~+10% rated output voltage</td></tr><tr><td><strong>Overload protection Range</strong></td><td>105%~135%</td></tr><tr><td><strong>Overload protection Type</strong></td><td>Constant current limiting, shut off after 5 sec., re-power on to recover</td></tr><tr><td><strong>Over voltage protection Range</strong></td><td>115%~140%</td></tr><tr><td><strong>Over voltage protection Type</strong></td><td>Shut down O/P voltage, re-power on to recover</td></tr><tr><td><strong>Withstand voltage</strong></td><td>I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC</td></tr><tr><td><strong>Working temperature</strong></td><td>-20~+70°C</td></tr><tr><td><strong>Safety standards</strong></td><td>UL60950-1, TUV EN60950-1 approved</td></tr><tr><td><strong>EMC standards</strong></td><td>EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11</td></tr><tr><td><strong>Connection Input</strong></td><td>3P/13mm pitch terminal block with cover</td></tr><tr><td><strong>Connection Output</strong></td><td>Copper pillars</td></tr><tr><td><strong>Dimension (LxWxH)</strong></td><td>278x127x83.5</td></tr><tr><td><strong>Case No.</strong></td><td>943A</td></tr><tr><td><strong>Packing</strong></td><td>3.0kg; 4pcs / 13kg / 1.19CUFT</td></tr></tbody></table>
