Orange Pi 5 4GB/8GB/16GB LPDDR4/4X Rockchip RK3588S 8-Core 64 Bit Single Board Computer, Development Board Run Orange Pi/Linux/Ubuntu/Debian/Android OS (8GB+Power Supply)

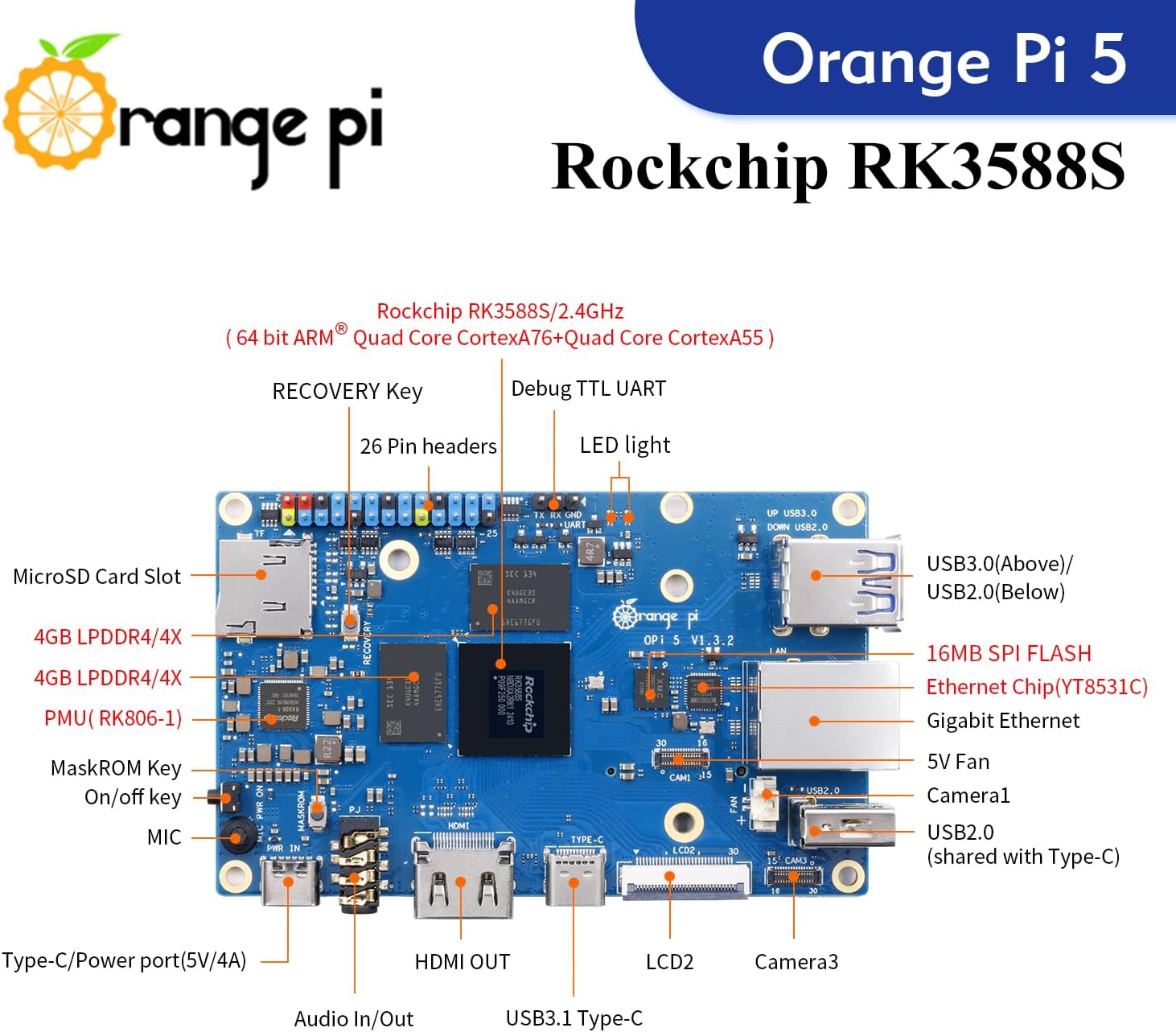

Hardware SpecificationSoC: Rockchip RK3588S (8nm LP process)CPU: 8-core 64-bit processor Big.Little Architecture: 4xCortex-A76 and 4xCortex-A55, Big core cluster is 2.4GHz, and Little core cluster is 1.8GHz frequency.GPU: Arm Mali-G610 MP4 “Odin” GPU Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2 3D graphics engine and 2D graphics engineNPU: Built-in AI accelerator NPU with up to 6 TOPS, supports INT4/INT8/INT16 mixed operationRAM: 4GB/8GB/16GB(LPDDR4/4X)Memory: QSPI Nor FLASH 16MB MicroSD (TF) Card Slot M.2 M-KEY SocketUSB: USB3.0 × 1USB2.0 × 2Type-C (USB3.1) ×1Video Output: HDMI2.1, up to 8K @60Hz DP1.4 (DisplayPort), DP1.4 and USB3.1 ports are multiplexed, and the port is shared with Type-C 2 * MIPI D-PHY TX 4Lane, configurable up to 4K @60HzCamera: MIPI CSI 4Lane 2 * MIPI D-PHY RX 4LaneAudio: CODEC: ES8388 3.5mm headphone jack audio input/output Input: Onboard MIC HDMI 2.1 eARCEthernet: 10/100/1000Mbps EthernetExpansion Port: For extending UART, PWM, I2C, SPI, CAN and GPIO interfaces.M.2 M-KEY Socket Expansion Slot: Support PCIe NVMe SSDSupport custom PCIe Wi-Fi6+BT5.0 moduleButton: 1×MaskROM key1×Recovery key1×On/Off keyPower Source: Support Type-C power supply, 5V @ 4ALED: Power indicator: red Status indicator: greenDebugging: 3 Pin debug serial port (UART)Supported OS: Orangepi OS(Droid), Orangepi OS(Arch), Ubuntu, Debian, Android12

• 🍊[High Performance]: Orange Pi 5 single board computer uses Rockchip RK3588S new generation 8-core (4-core A76 and 4-core A55) 64-bit processor with 8nm process design. Main frequency up to 2.4GHz, integrated ARM Mali-G610 GPU, embedded high-performance 3D/2D image acceleration module, built-in AI accelerator NPU with up to 6 TOPS, supports INT4/INT8/INT16 mixed operation, with 4GB/8GB/16GB/32GB (LPDDR4/4x), and up to 8K display processing capability.
• 🍊[8k Video Codec Support]: Orange Pi 5 now has the capability to support 8K video playback at 60fps. With its powerful video codec, it enhances image clarity and provides a higher level of detail, resulting in an enhanced user experience.
• 🍊[Abundant Interfaces]: The Orange Pi 5 development board is equipped with a wide range of interfaces to meet various needs. It includes HDMI 2.1 output, a 26 PIN expansion port, M.2 PCIe 2.0, USB Type-C port, Gigabit LAN port, 2 USB 2.0 ports, and 1 USB 3.0 port, among others. Orange Pi 5 can be utilized in diverse fields, including tablets, edge computing, artificial intelligence, cloud computing, AR/VR, intelligent security, and smart home applications.
• 🍊[Support Open Source]: Orange Pi 5 single board computer enables the building of computers, wireless servers, games, audio and video systems, and speaker setups. It is compatible with various operating systems such as Orange Pi OS (Droid), Ubuntu, Debian, Armbian, Linux, and Android 12 OS.
