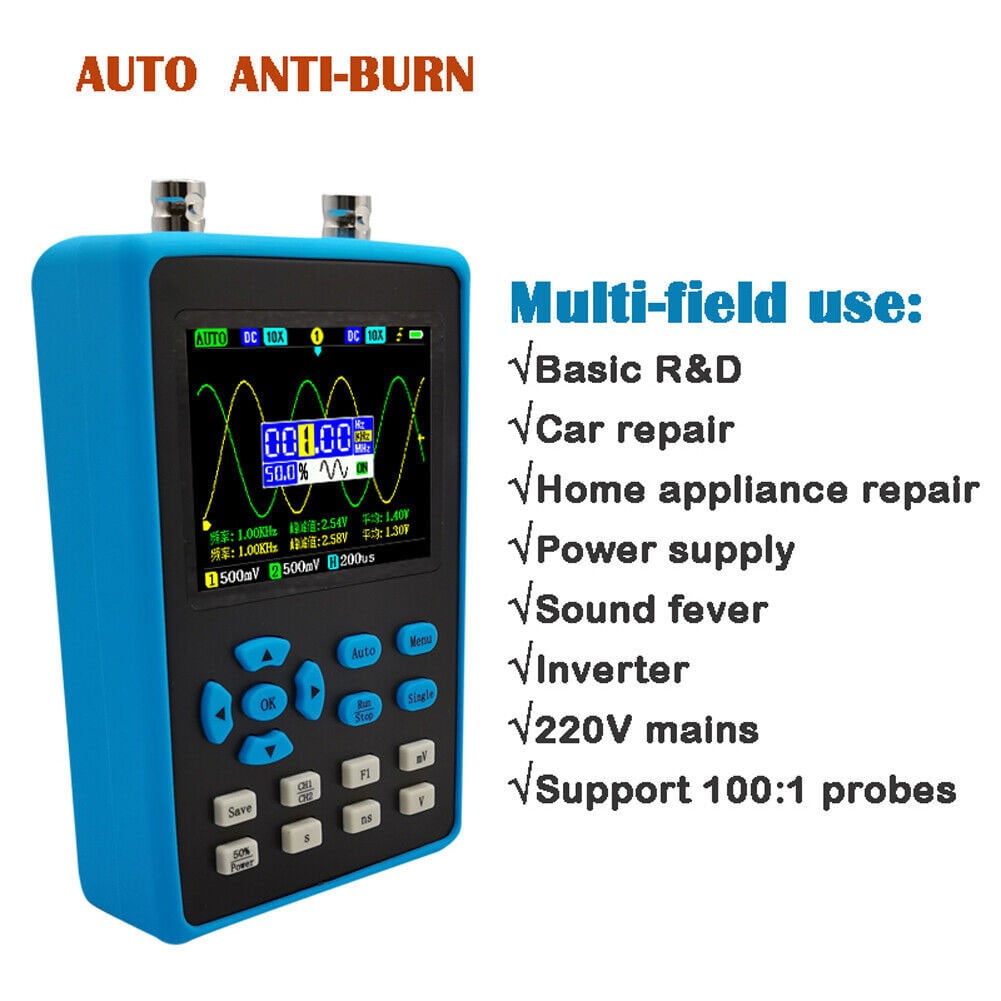

Portable DSO2512G 120M Bandwidth Dual Channel Oscilloscope +FPGA+ADC

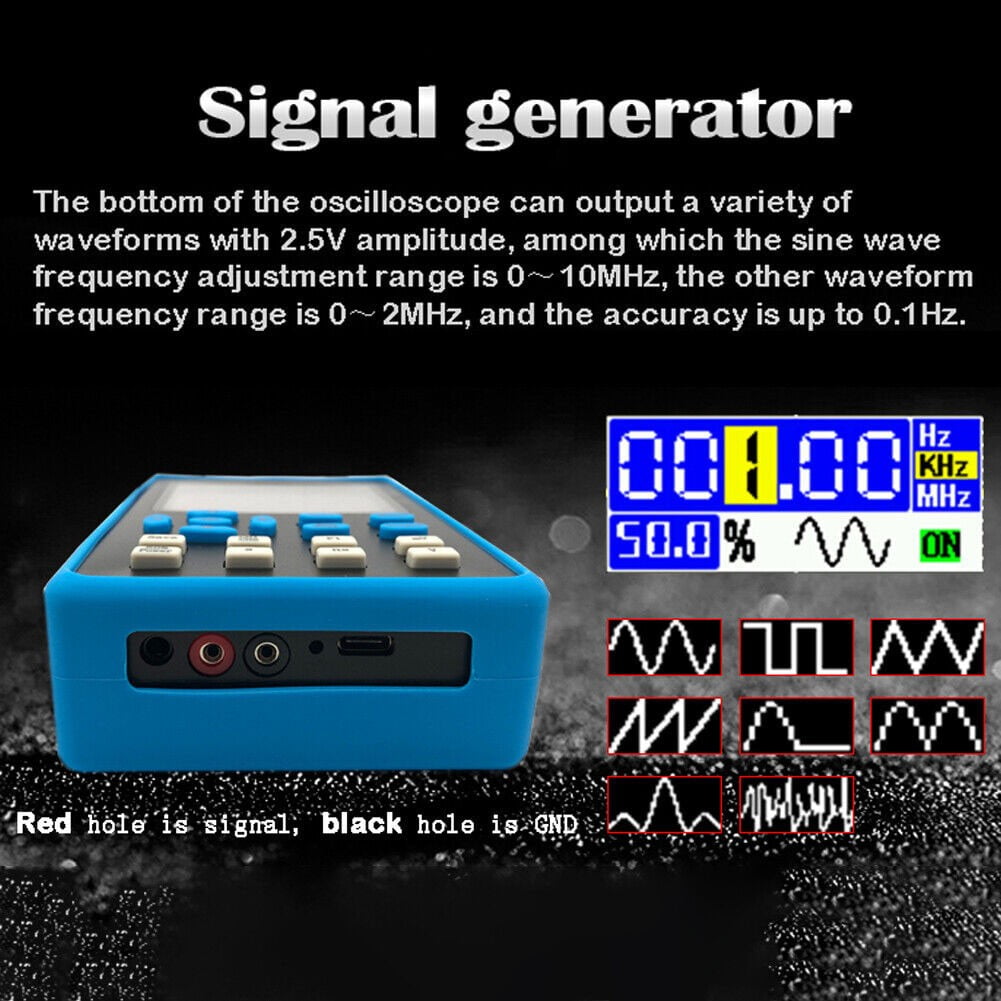

<p><strong>Features:</strong><br>* This DSO2512G 120M bandwidth oscilloscope is powerful. It uses FPGA chips and can also output various waveforms with an amplitude of 2.5V, such as sine waves and half waves. Come and try it, you will not be disappointed.<br>* Using FPGA chips, it provides high-speed signal acquisition and high-speed data processing, giving you a smooth user experience and rich functions.<br>* When channel 2 is closed, bandwidth can reach 120M, and when 1 and 2 are opened at the same time, the bandwidth is 60M.<br>* Widely used: can be used for microcontroller debugging, car maintenance, home appliance maintenance, DIY debugging, e-sports, power supply debugging, inverter, .<br>* The bottom of the oscilloscope can output various waveforms with an amplitude of 2.5V, such as sine waves, square waves, triangle waves, half waves, single waves, . The frequency adjustment range of sine waves is 0~10MHz, and the frequency adjustment range of other waveforms is 0~2MHz, with an accuracy of up to 0.1Hz. Signal generators are widely used, such as square waves are used to calibrate new probes, drive MOS tubes, ., and sine waves can be used to test audio distortion, .<br>* There are 14 measurement options to choose from: frequency, P-eak to P-eak, duty cycle, amplitude, RMS, average, period, + pulse width, - pulse width, maximum, minimum, top, bottom, - duty cycle comparison.<br>* There are three trigger modes: automatic, normal, and single. Automatic triggering can update the waveform in real time without triggering. Normal triggering requires waveform triggering to update the waveform. Single triggering will sample the waveform once, and the waveform lasts for frame per frame. Press the k key to stop automatically.<br>* Through the USB cable connection, the waveform can be exported to the computer (up to 50 at a time) for you or others to use.<br>* Supports zooming the waveform after stopping: After stopping, you can drag the waveform from left to right to find the place you are interested in, expand to observe the details, and analyze the cause of the problem.<br><br><strong>Specifications:</strong><br>Part name: Oscilloscope<br>Material: ABS+metal<br>Channels: 2<br>Coupling: AC/DC<br>Voltage accuracy: ±2%<br>Bandwidth 120M<br>XY mode: Support<br>Sampling rate: 500M<br>Screenshot: Support<br>Rise time: &lt;3ns<br>Frequency: ±0.01%<br>Memory depth: 128Kbit<br>Independent: Support<br>Impedance: 1MΩ<br>Fast Fourier transform: Support<br>Time base: 5ns~10s<br>Waveform output : 2.5V<br>Sensitivity: 10mV/div~10V/div<br>Output frequency: 10MHz (sine) 2MHz (other)<br>Maximum voltage ±40V (x1), ±400V (x10)<br>Trigger type: rise/fall<br>Display mode: YT/roll<br>Afterglow: none/1s/∞<br>Battery: 1 1 lithium battery, 4000mAh (included)<br>Color: as shown<br>Package size: 210*140*115mm/8.3*5.5*4.5 inches<br>Package weight: 689g/1.5lbs<br><br><strong>Package contents:</strong><br>1 x Oscilloscope<br>2 x Probes<br>1 x Video cable<br>1 x for Gan cable<br>1 x Storage bag<br>1 x User manual<br><br><strong>Note:</strong><br>1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.<br>2.Please allow slight manual measurement deviation for the data.</p>

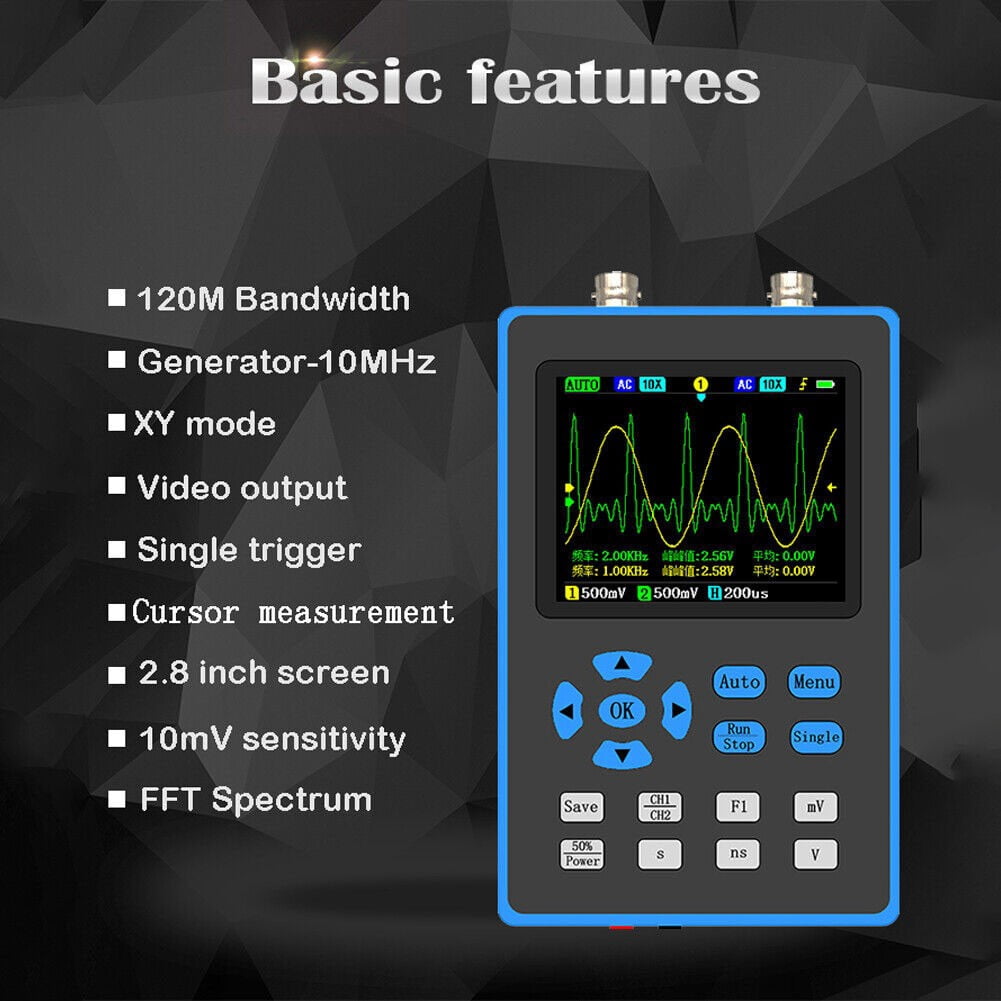

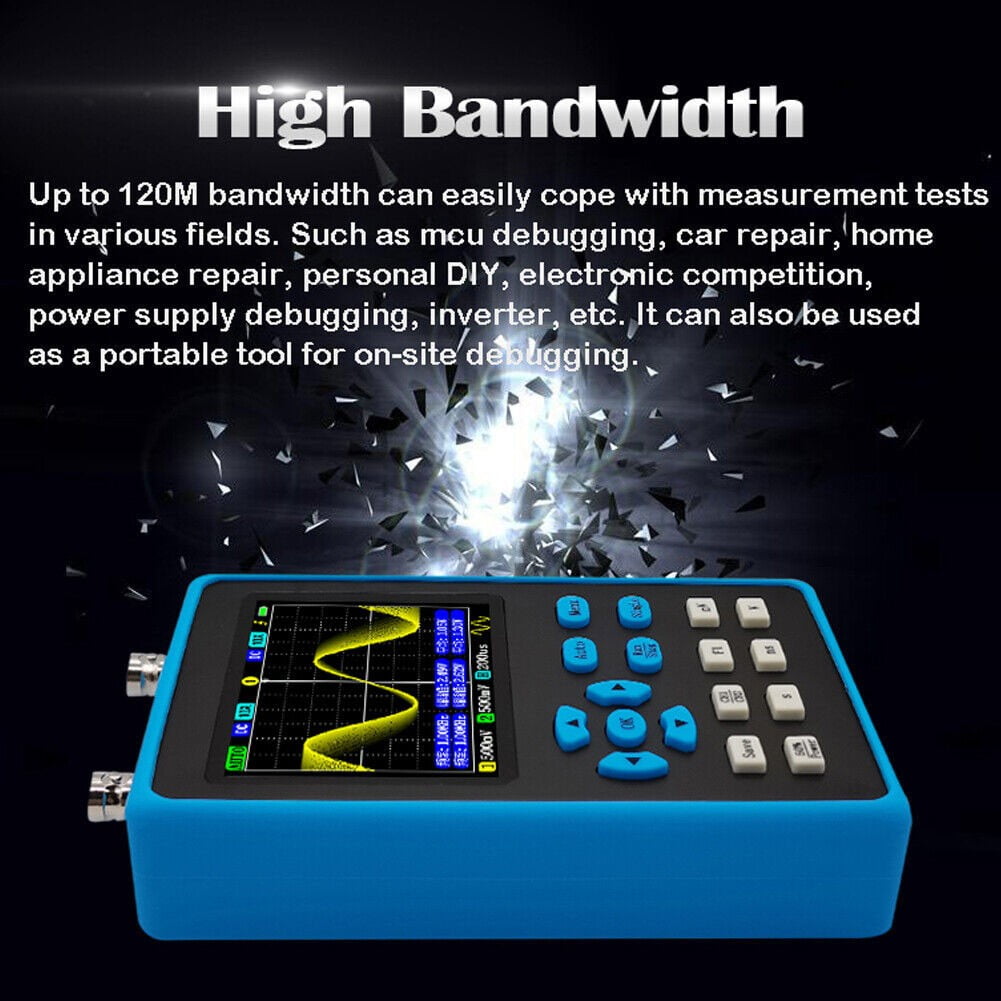

• 【HIGH-SPEED CAPABILITIES】 With a 120M bandwidth and dual channel support, the DSO2512G oscilloscope utilizes FPGA chips for rapid signal processing and enhanced user experience. for complex measurements requiring .
• 【WIDE USAGE SCENARIOS】 Suitable for a variety of tasks including automotive diagnostics, home electronics troubleshooting, e-sports applications, and DIY electronics projects. A must-have tool for engineers and tech enthusiasts.
• 【MULTIPLE WAVEFORM GENERATION】 Outputs diverse waveforms like sine, square, triangle, and more at an amplitude of 5V. Frequency ranges from 0-10MHz for sine waves allow precise testing in various scenarios.
• 【EFFICIENT TRIGGERING OPTIONS】 Features automatic, normal, and single triggering modes to accommodate different measurement needs. Effortlessly update or freeze waveforms for in-depth analysis with user-friendly controls.
• 【SIZING REMINDER】 you refer to your specific size chart before making a purchase to achieve optimal results.
