VideoSecu Articulating TV Wall Mount for Most 26"-55" LG LED LCD Plasma HDTV Full Motion Flat Panel Screen Bracket 32LH550B 32LJ550M 43LH5000 43LJ550M 49UJ6500 49UJ7700 55UJ6300 55LJ550M bd5

VideoSecu supplies high-quality wall mount with long extension, offering flexible adjustments for your expectation. The tilt swivel TV wall mount fits most 22 - 47 inch TV and some LED screens up to 55 inch with weight less than 66lbs (Please check VESA and weight). With 4 free VESA extender adaptors, the VESA mounting holes patterns can extend to 600x400mm. The nesting arm can be folded parallel to the wall about 2" to save space. The removable VESA plate can be taken off, which is great for easy installation. Multi-directional adjustable tilt 15 degrees forward or backward, swivel up to 180 degrees, extend up to 24" can provides excellent viewing experience. Absolutely the best choice for you!

Specifications:

• *Fits most 22" - 47" TVs, some light-weight LED up to 55" (please check VESA and weight)

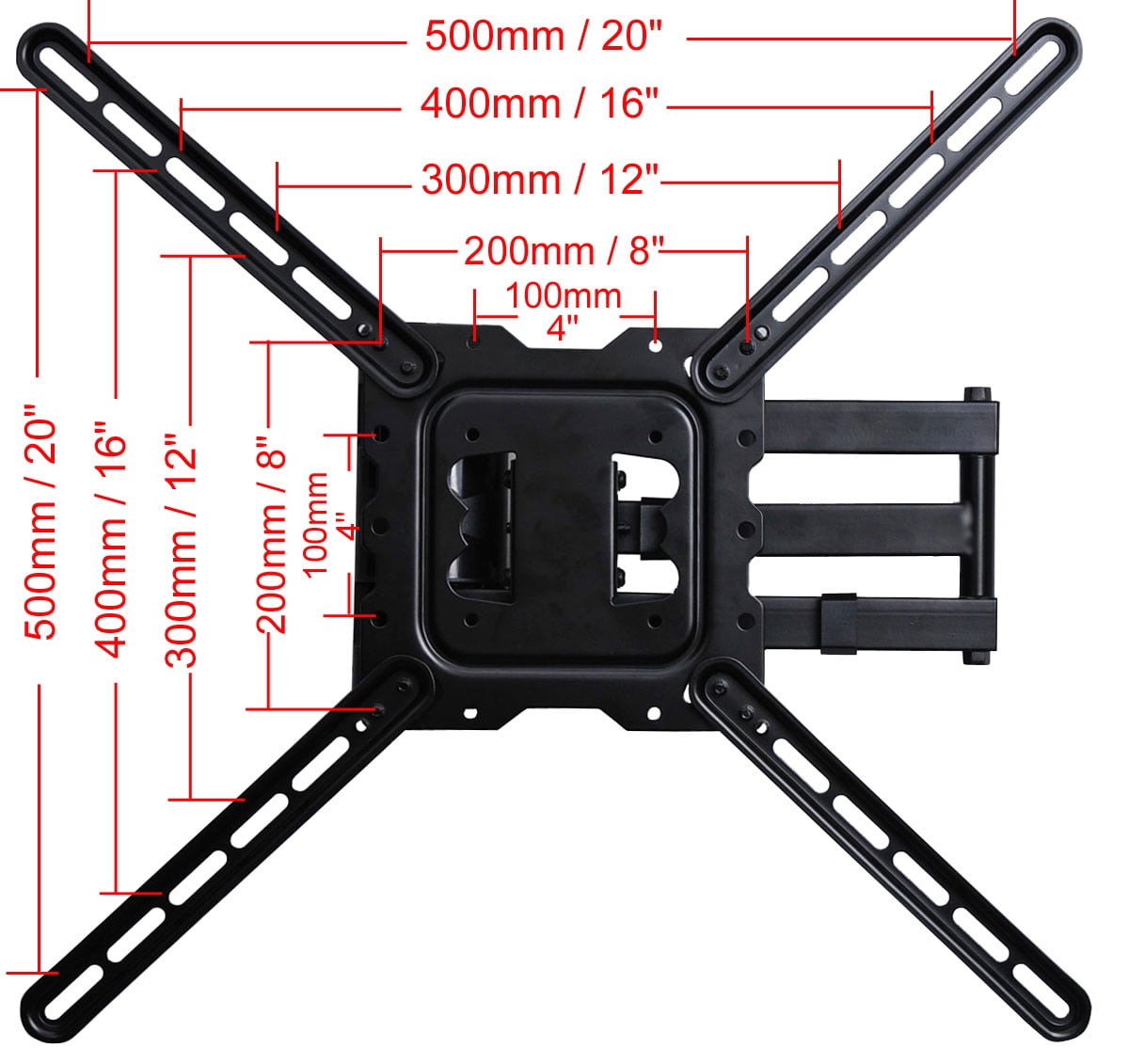

• *Fits VESA mounting hole patterns: 600x400/ 500x300/ 400x400/ 400x300/ 400x200/ 300x300/ 300x200/ 200x200/ 200x100/ 100x100mm
• *Loading capacity up to 66lbs/30kg
• *Adjustable tilt 15 degrees forward or backward for perfect viewing angle
• *Adjustable swivel 180 degrees for comfortable view angle in different positions
• *Extension: extend out up to 24" with maximum flexibility
• *Depth: collapses to a slim 2" off the wall to save space
• *Warning: This mount does not fit 42" or above TVs which were manufactured before 2013

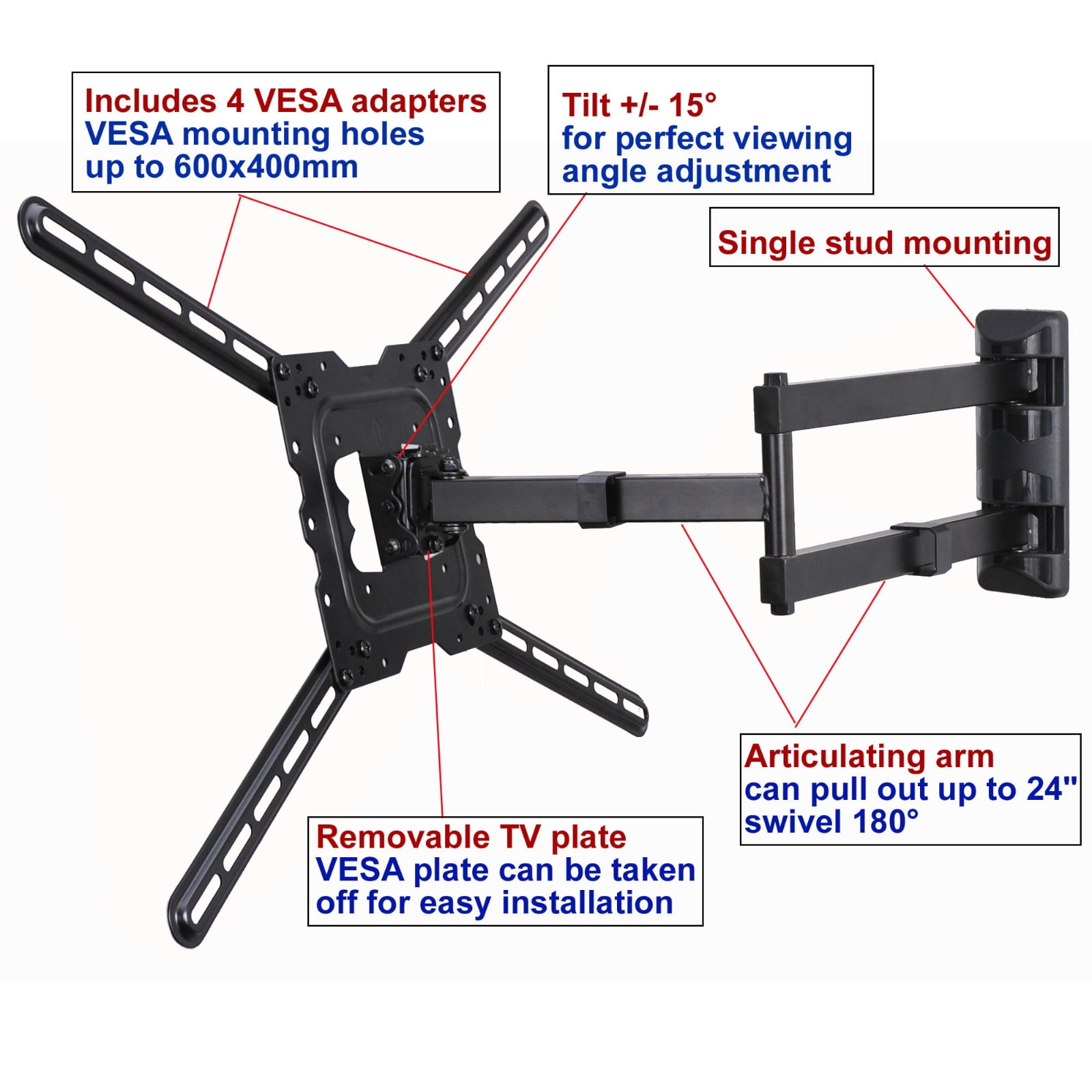

Features:

• *Integrated cable management design on articulating arm keeps wire out of the way
• *Post-installation level adjustment allows the TV to perfectly level
• *Heavy duty durable steel construction with powder coated black finish
• *The detachable VESA plate can be taken off for quick and easy installation

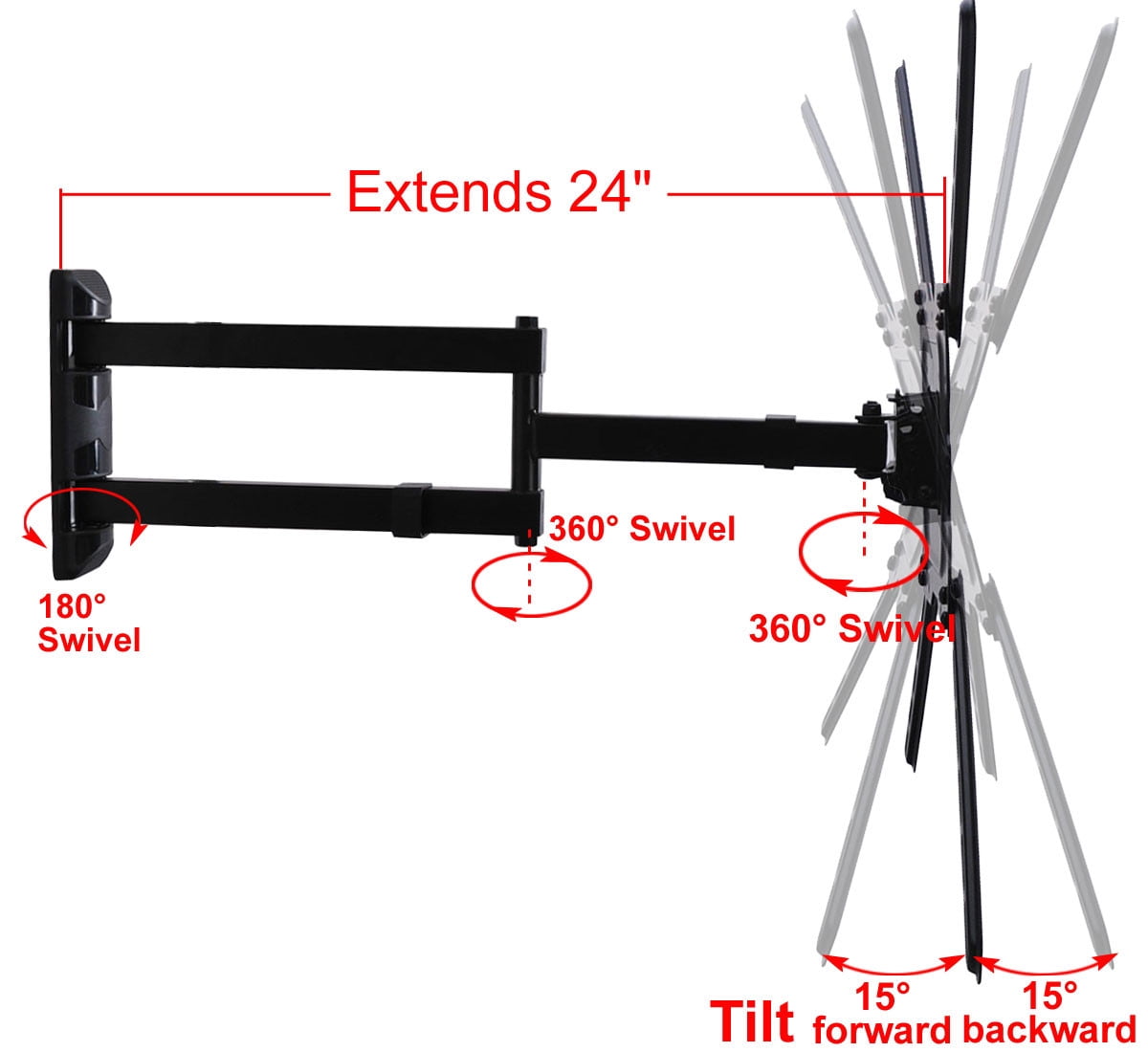

• *Multi-directional adjustment tilt, swivel and extend for perfect viewing angle
• *Single stud installation with decorative cover to hide screws on wall

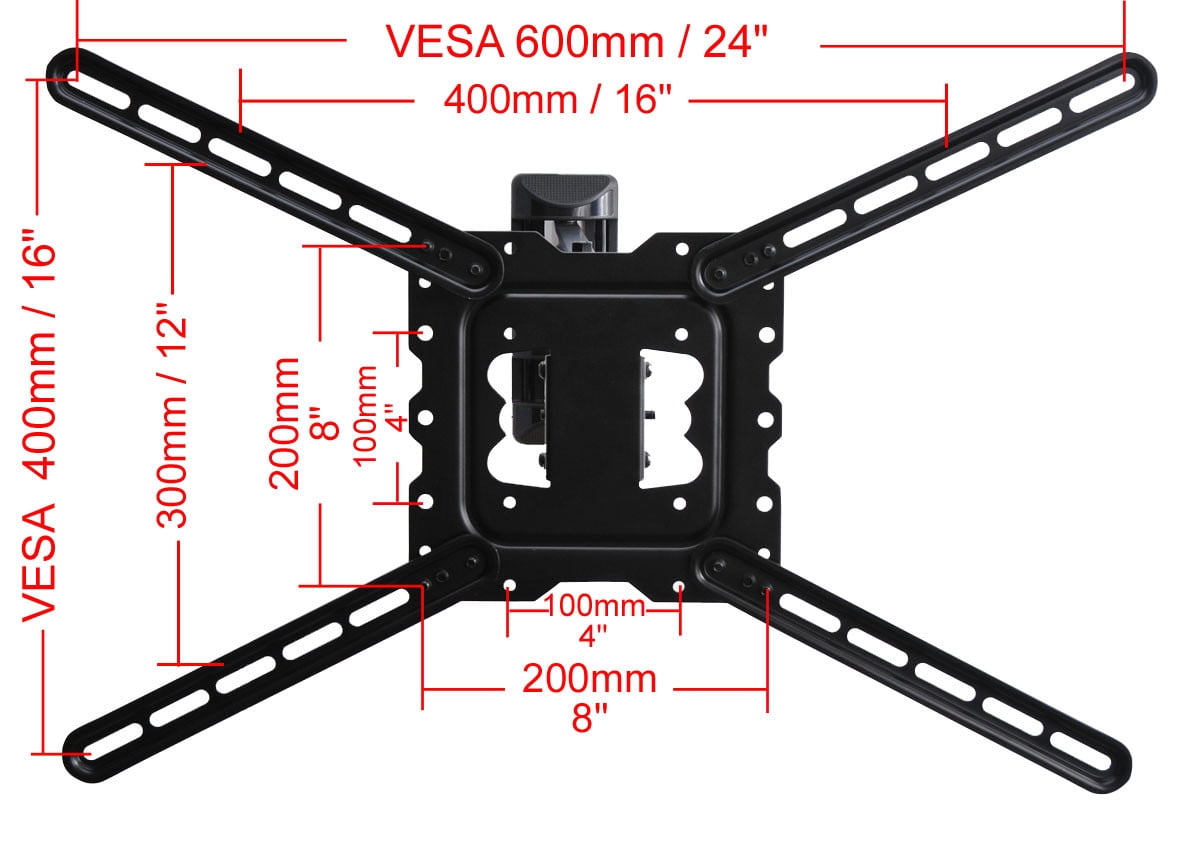

• *Free 4 VESA adapters in package, VESA can reach up to 600x400mm/ 24"x16"
• *Note: For some LG and SONY TVs, please check the area inside the 4 mounting holes to make sure there are not any plugs. Otherwise, the plate may block the plugs

Please check whether the mount is suitable for your TV:

• Please check the weight of your TV, it must be less than 66 lbs.
• Please look at the back of your TV, find the mounting hole and measure width and height, if the distance is one of the following data, then the mount will work perfect for you:

600mm x 400mm (24"x16")

400mm x 400mm (16"x16")

400mm x 300mm (16"x12")

400mm x 200 mm (16"x8")

200mm x 200 mm (8"x8")

300mm x 300 mm (12"x12")

300mm x 200 mm (12"x8")

200mm x 100 mm (8"x4")

100mm x 100 mm (4"x4")

Package contents:

TV wall mount, 4 VESA adapters, standard mounting hardware, user manual

Screen size	55
Max load	66 lb
Mount pattern	600 x 400, 600 x 500, 400 x 400, 500 x 400, 600 x 300, 300 x 400, 400 x 300, 500 x 300, 300 x 300, 600 x 200, 400 x 200, 500 x 200, 200 x 300, 300 x 200, 600 x 100, 200 x 200, 400 x 100, 500 x 100, 300 x 100, 200 x 100, 100 x 100
Mount type	Wall Mount
Tv & monitor mount type	Full-Motion TV Mount
Tilt angle	15 º
Minimum screen size	22"
Material	Steel
Brand	VideoSecu
Color	Black
Finish	powder coated black
Weight	9.64 lbs
Maximum depth	2 in
Accessories	4 VESA adapters, standard mounting hardware, user manual
Has written warranty	No
Retail packaging	Kit
Model	WAML563B-B2
